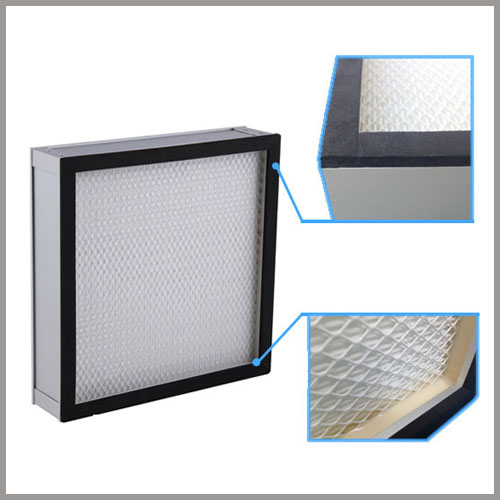

1 2002101H345
  • 1 2002101H345

F7 to F9 Compact Mini-Pleated Filter

  • Mobile：+86521-57501864
  • Buynowsmalls
With this similar product

  • Product Details

  • Contact Us

9781B34B5F


F7 to F9 Compact Mini-Pleated Filter










Introduction

----------------------------------------------------------------------

F7 to F9 Compact Mini-Pleated Filter

Water proof glass fiber paper F7 to F9 Compact Mini-Pleated Filter is special used in the air supply system with limited space.

9781B34B5F

Specs of F7 to F9 Compact Mini-Pleated Filter

Type:  High performance compact panel filter

Media: water proof glass fiber paper

Frame Material: Aluminum /Stainless steel/Cardboard/ABS

Separator: Hot-melt glue

Protective screen: High strength metal retainer with painting process

Recommended final pressure drop: 350Pa

Temperature: 90ºC maximum in continuous service

Thickness

Pressure drop （Pa）at 2.5m/s

(Inches)

(mm)

F7

F8

F9

2 1/2

69

155

195

215

3 1/2

90

135

175

195

4 1/2

110

115

155

175



Dimensions (W x H)

Air Flow（m3/h）

 (Inches)

  (mm)

at 2.5m/s

24×24

592×592

3400

24×12

592×287

1700

24×20

592×490

2800

20×20

490×490

2300



Features of F7 to F9 Compact Mini-Pleated Filter

-95 pleats/feet, 20% higher than normal product, lower resistance and longer life

- Ultra-fine glass fiber paper, good stability of filtration efficiency

- Perfect structure of "V" shape, effectively reduce the system resistance

- Light, compact structure

- Double side retainers



Applications of F7 to F9 Compact Mini-Pleated Filter

Water proof glass fiber paper F7 to F9 Compact Mini-Pleated Filter is special used in the air supply system with limited space.
