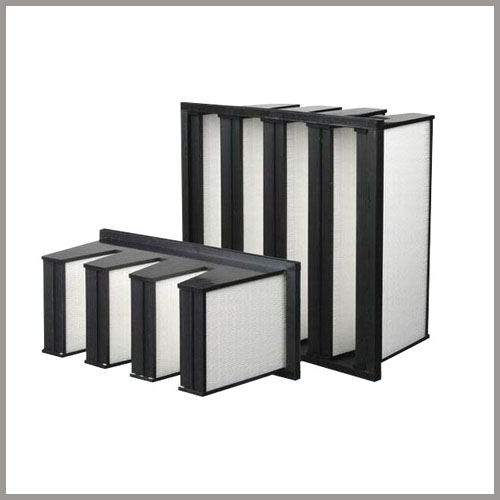

F7 to F9 W V Type Filter

Introduction

----------------------------------------------------------------------

F7 to F9 W /V Type Filter

Ultra fine Glass fiber paper F7 to F9 W/V Type Filter is special used in air supply system with limited space.

Specs of F7 to F9 W /V Type Filter

Type:  High performance W/V type filter

Media: Glass fiber paper

Separator: Hot melt glue

Sealant: Polyurethane

Recommended final pressure drop: 500Pa

Temperature: 90ºC maximum in continuous service

Features of F7 to F9 W /V Type Filter

- Ultra-fine glass fiber paper，good stability of filtration efficiency

- Pleat distance: 3 mm, pleat height: 27 mm, bring lower resistance and longer life

-With protective mesh at the side of installation handle, provide adequate protection for filter

-ABS and metal frame are available.

Applications of F7 to F9 W /V Type Filter

Ultra fine Glass fiber paper F7 to F9 W/V Type Filter is special used in air supply system with limited space.
