G3 to M6 Pleated Pre-Filter With metal Support



Introduction

----------------------------------------------------------------------

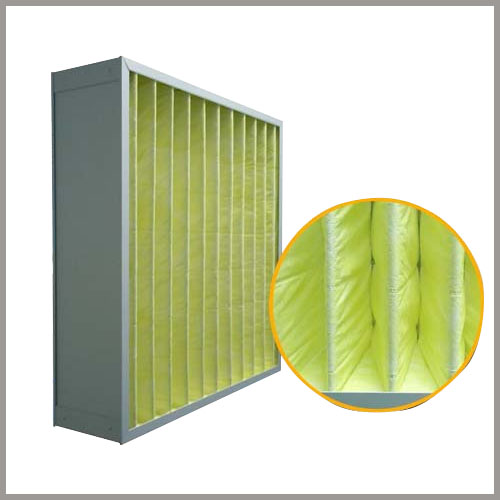

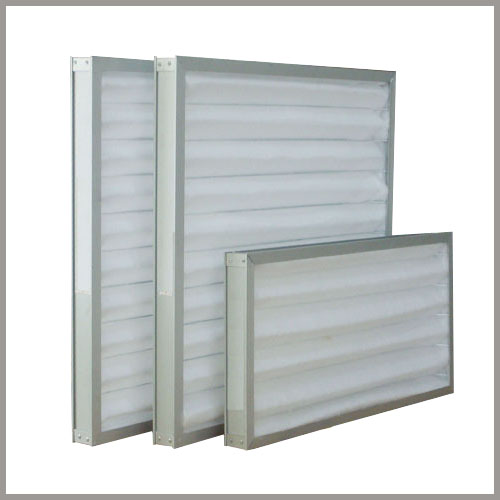

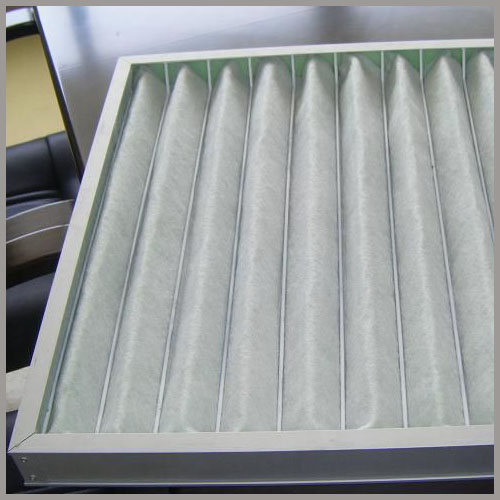

G3 to M6 Pleated Pre-Filter With Metal Support

INDRO Polyester fiber G3-M6 pleated filter with metal support is special used as pre filter in air-condition system.

1.    Specs of G3-M6 Pleated Pre-Filter with Metal Support

Type: Pre-filter

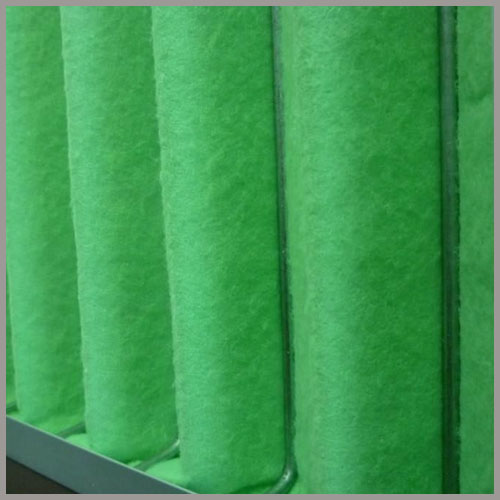

Media: Polyester fiber

Frame Material: Galvanized steel/Aluminum/ABS

Recommended final pressure drop:  250Pa

Temperature: 100ºC maximum in continuous service

Thickness		Pressure drop （Pa）at 2.5m/s
(Inches)	(mm)	G3	G4	M5	M6
2	46	70	80	100	120
4	96	60	70	90	110



Dimensions (W x H)		Air Flow（m3/h）
(Inches)	(mm)	at 2.5m/s
24×24	592×592	3400
24×12	592×287	1700
24×20	592×490	2800
20×20	490×490	2300



2. Features of G3-M6 Pleated Pre-Filter with Metal Support

- 7 pleats/feet, 40% higher than normal panel filter

- With holding frame, very strong and stable structure

-Easy replacement of filter media by users.

-Reusable holder and frame

-Water washing is available when necessary.

3. Applications of G3-M6 Pleated Pre-Filter with Metal Support

Special used as pre filter in air-condition system.
