LCR range oil holding filter bags-size1#

Introduction

----------------------------------------------------------------------

LCR range oil holding filter bags-size1#

1.Introduction of LCR range oil holding filter bags-size1#

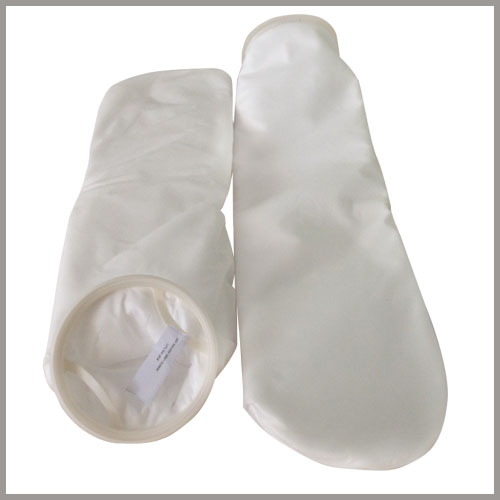

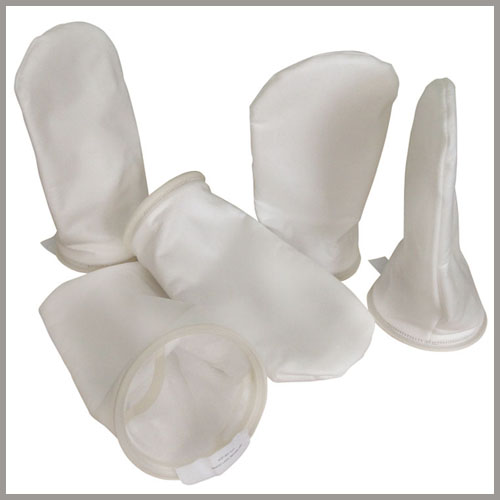

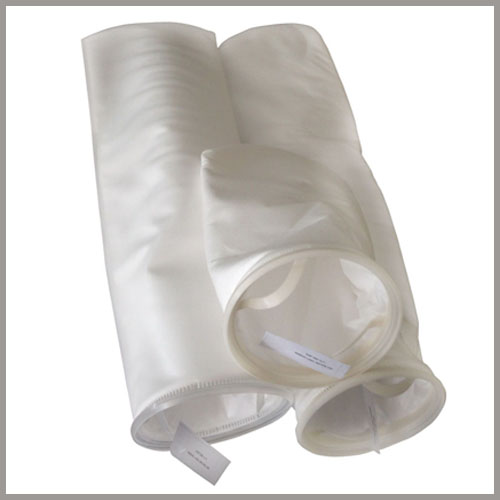

Oil holding filter bag is made from 100% polypropylene melt-blown microfiber provides great oil absorbency. It is featured with high chemical resistance can absorb unwanted oil.

2.Features of LCR range oil holding filter bags-size1#

High flow rate, high loading capacity/Effective oil absorbancy/Multilayered construction, high surface area

Customized service available/100% polypropylene, FDA listed material

3.Specification of LCR range oil holding filter bags-size1#

Size:1#(7"*17"),2#(7"*32")                                                                                                                               Micron Rating (㎛)：1,  5，10，25，50，75，100

Recommended Operating Pressure Drop：≦1.5 kg/cm2

Max. Operating Pressure Drop：≦2 kg/cm2

Max. Operating Temperature：80℃/110℃

SIIC oil holding bag includes: SIIC-LCR-123 /SIIC-LCR-525/SIIC-AGF ranges.

SIIC-LCR-123(100 range)

1) With three filter layers

2) The efficiency is no less than 93%, some larger dust efficiency up to 99%

3) with unique fiber and deep structure, so it can block the impurities well and high oil absorbency performance

4) have a very low pressure, longer life, more economic.

5) Oil absorbency can be it’s 15-20 times of the bag weight

SIIC-LCR-525(500 range)

1) With 8-12 filter layers

2) The efficiency is no less than 95%, some larger dust efficiency up to 99%

3)  with unique fiber and multi-layer, so the filter area is bigger, then it can block the impurities well and high oil absorbency performance

4) have a very low pressure, longer life, more economic.

5) Oil absorbency can be its 15-20 times of the bag weight

SIIC-AGF filter bags

1) With 8-14 filter layers

2) The efficiency is no less than 98%, some larger dust efficiency up to 99.9%

3) With unique fiber and multi-layer, so the filter area is bigger, then it can block the impurities well and high oil absorbency performance

4) Have a very low pressure, longer life, more economic.

5) Oil absorbency can be its 15-20 times of the bag weight
